Wednesday, November 19, 2014


When working with revisions, the workflow is thus. You place a CLOUD around the items that have been revised and you also place a TAG directly adjacent (and touching) the cloud that gives reference to the cloud, letting people (mostly the contractor or installer) know which project revision this work is associated with. This keeps things organized.

When you issue another revision.. you must give it a separate number.. again, this keeps things organized. But, this time you must do another task. It is common practice to turn off the CLOUD from the previous revisions, but LEAVE the old revision TAGS on. This alerts people to the fact that another previous revision has occurred in this area, but doesn't cloud the issue with extra clouds laying around. haha

At first this may seem like a daunting task.. but Revit has it all figured out.
If you have been using the Revision system built into Revit (accessed by selecting Manage>Additional Settings>Sheet issues/Revisions).. the dialog and revision cloud on the drawings should look like this.

When you ADD another revision and ISSUE your first one:

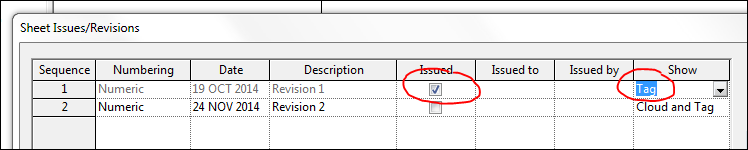

First, check the box for ISSUE (this locks the revision clouds from being edited).
Second.. change the dropdown from 'Cloud and Tag' to just 'Tag'.. and all the revision clouds from the previous revisions will turn OFF but their associated tags will be left ON.

BAM.. move along.

Wednesday, November 5, 2014

Magical Moving Grid Heads

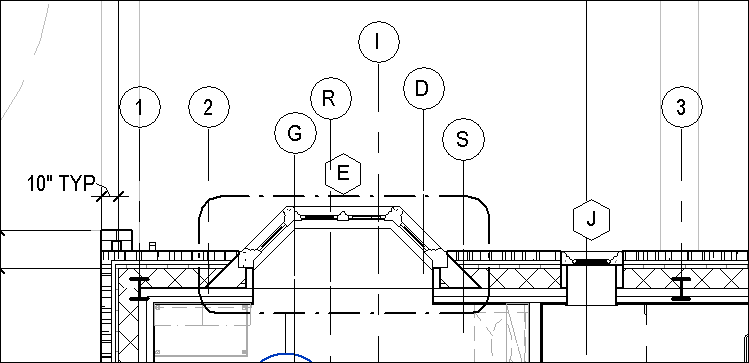

Ever work on a project and find the Grid Heads moving on other Views when you intended them to only be moved in the current view?
Grid heads have a 3D and a 2D feature built into them.
Typically.. out of the box... they are set to 3D.. which means when moved, they will move in all other similar views (example: all the plan views). But you can switch this setting to 2D on an individual Grid Head basis in order to move the Grid Head where you need.. and this will NOT effect the other views.
Here's how:
Select the Grid line.. you will see (NEAR the Grid Head) a small annotation of '3D' or '2D'. If it is set to 3D, then by clicking on this small annotation you can switch it from 3D to 2D.. and then the Grid Head can be safely fulled to a new location.

You can switch it back to working in 3D and connected to all the other views by aligning the 2D head to the little CIRCLE on the grid line. The 2D annotation will switch back to 3D.

NOTE: This 3D/2D functionality works on LEVEL MARKERs too when working in Elevations and Sections!!
