Friday, January 23, 2009

Curtainwall Magic

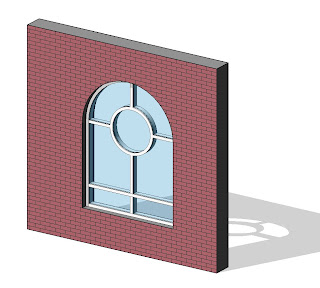

Curved Mullions are no longer an issue in Revit!
(SECRET REVEALED IN COMMENTS BELOW)

They are easy - you simply select the 'curved mullion' checkbox on the Options Bar when you are placing curtain grids. Shape handles allow you to pull and push manually or you can enter the radius in the field. Floating Mullions (not attached to the curtain wall edges) must be selected PRIOR to adding them... meaning you can't convert one of the simple curved ones to a floating mullion.

Finally we can do anything we want in Revit!

If you need any help with this just email me here at BIM WITS!
Happy Curtainwalling....

Wednesday, January 21, 2009

It's all "Relative"....


Using Relative paths for Revit files is a common practice since most of us are sharing our files with consultants and the odds of them having the exact same network configuration is slim.

Unfortunately there is a problem with Relative paths. Revit will only consider a link to be relatively pathed if the linked file is in the same folder as its host.
So if you link a file from another folder and set the path to Relative, Revit will still remember the path to that file and look for it along that path when the host file is moved or copied.

This isn't the end of the world, but it will require reloading of linked files when they are shared with consultants, copied or moved.
